Straw bale shredder ІТS-0,5
VALUE FROM:
14500
€Other models
Characteristics and description
The complex is used for grinding straw bales of cereals, legumes, etc. It is one of the components of briquetting and granulation lines. It is used in animal husbandry for making litter

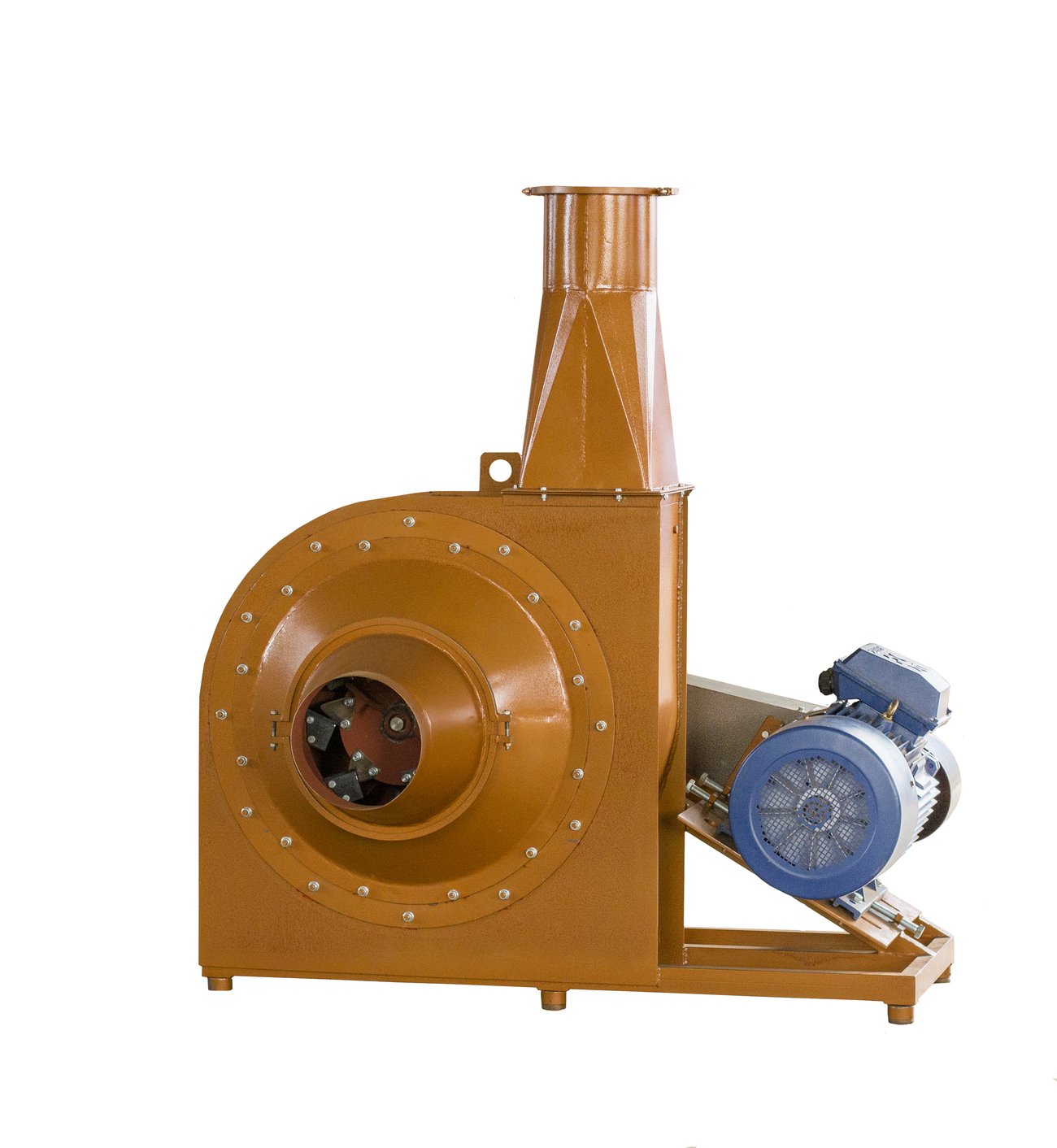

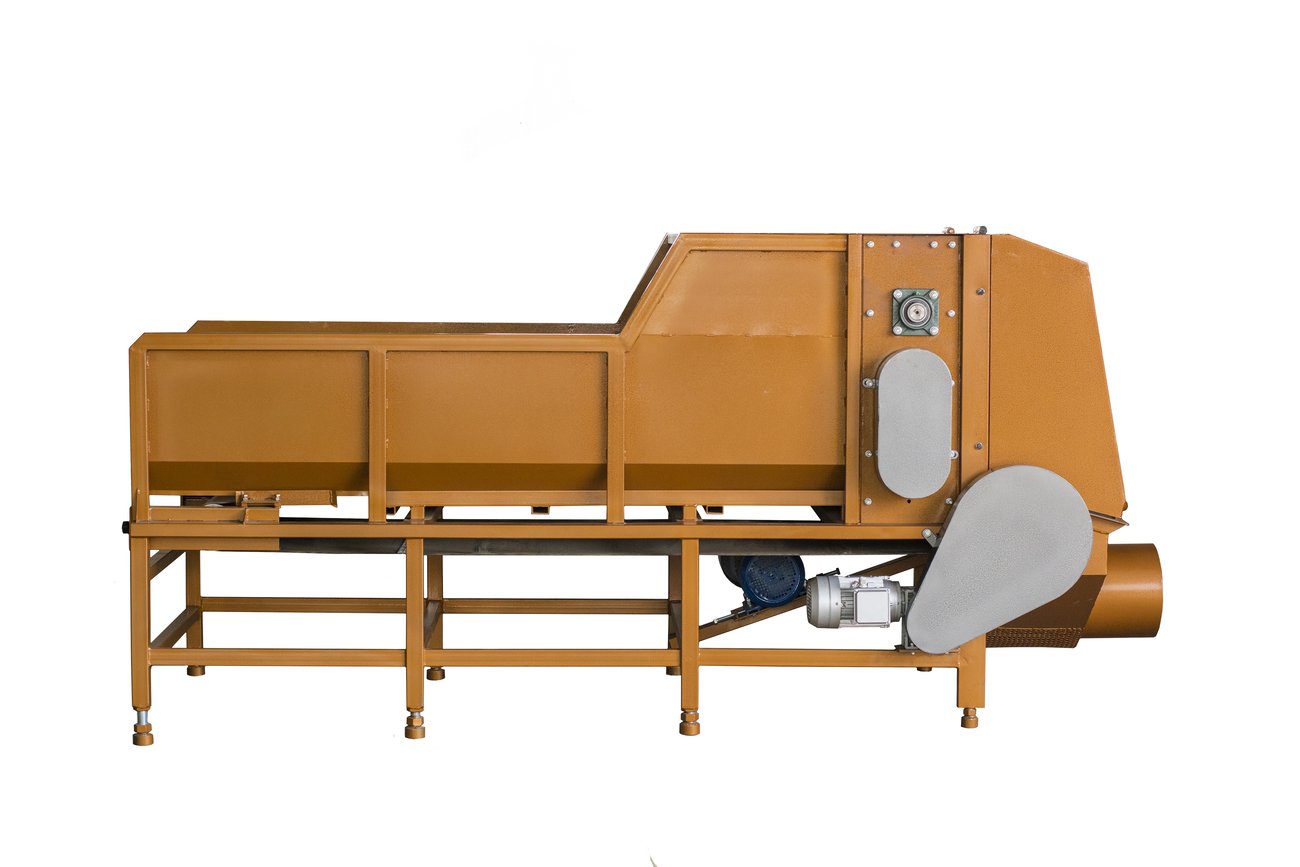

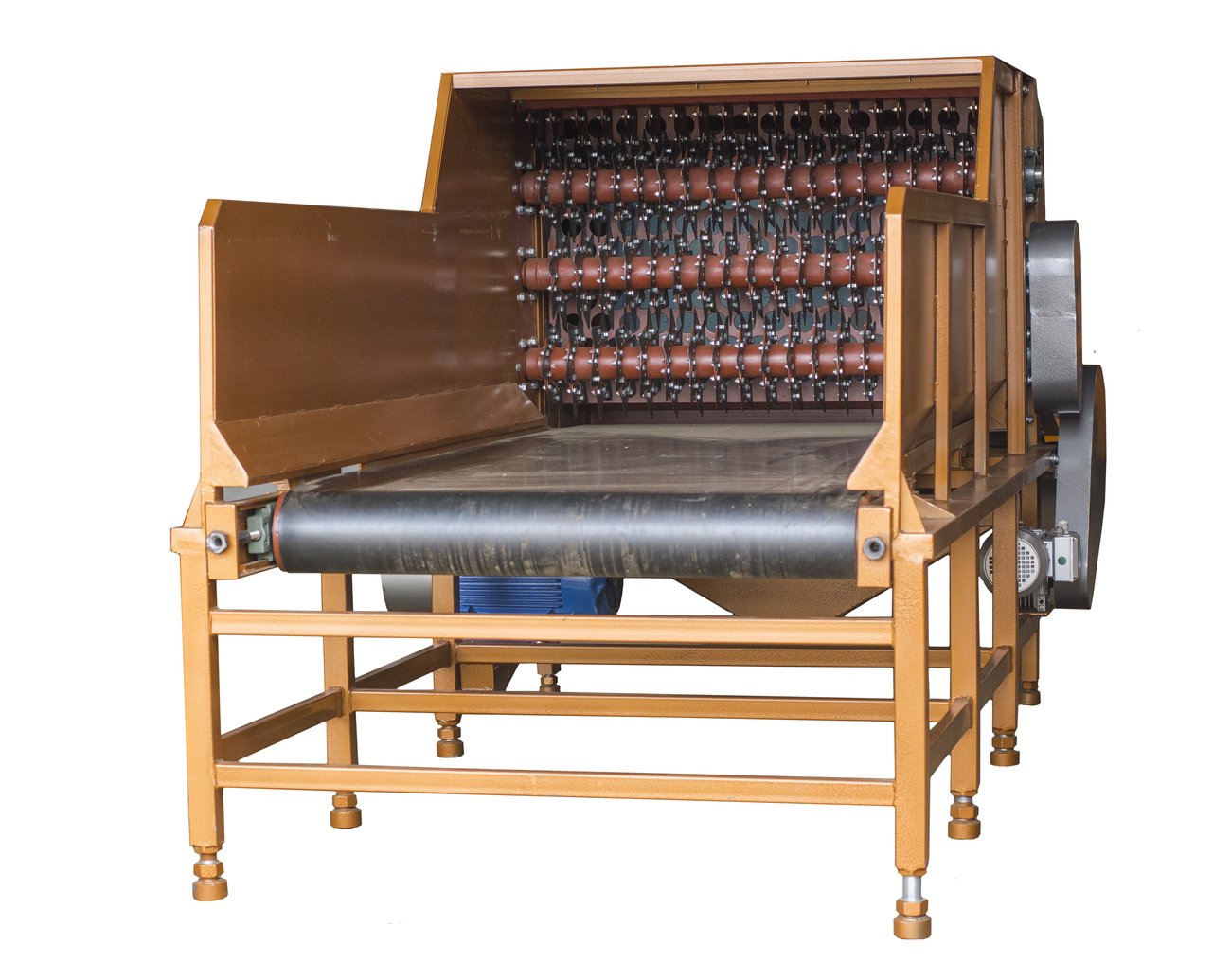

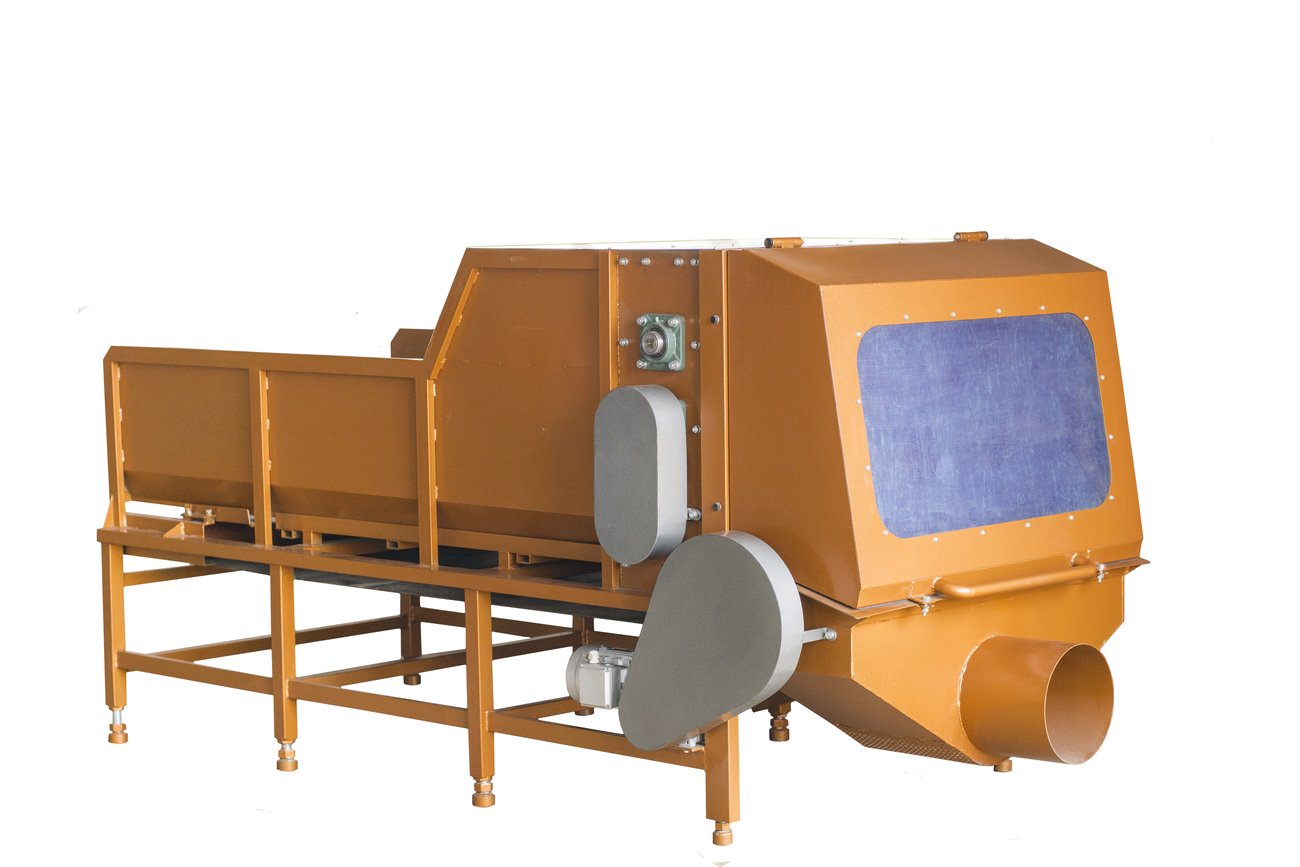

Straw bale shredder ІТS-0,5
Productivity 300 kg/h
| PERFORMANCE SPECIFICFTIONS | |
|---|---|
| Productivity | 300-500 kg\hour |
| Quantity of cutting segments on the screws | 382 pc. |
| Quantity of hummers of the grinding machine | 60 pc. |
| REQUIREMENTS TO RAW MATERIALS | |
| Humidity of raw materials at the entrance | up to 25% |
| Fraction size | Depending on a sieve |
| Bale | Square bale with the weight up to 20 kg |
| SPECIFIED ENGINES POWER | |
| Engine of the conveyor belt | 2,2 kW |
| Bale breaker screws’ motor | 5,5 kW |
| Engine of the hummer crusher | 22 kW |
| CONNECTIONS | |
| Three-phase network | 380V 50 Hz |
| OVERALL DIMENSIONS | |
| Length | 4 500 mm |
| Width | 1 550 mm |
| Height | 1 350 mm |
| Weight | 1 500 kg |
