Straw bale shredder ІТS-2
VALUE FROM:
28500
€Other models
Characteristics and description
The complex is used for grinding straw bales of cereals, legumes, etc. It is one of the components of briquetting and granulation lines. It is used in animal husbandry for making litter

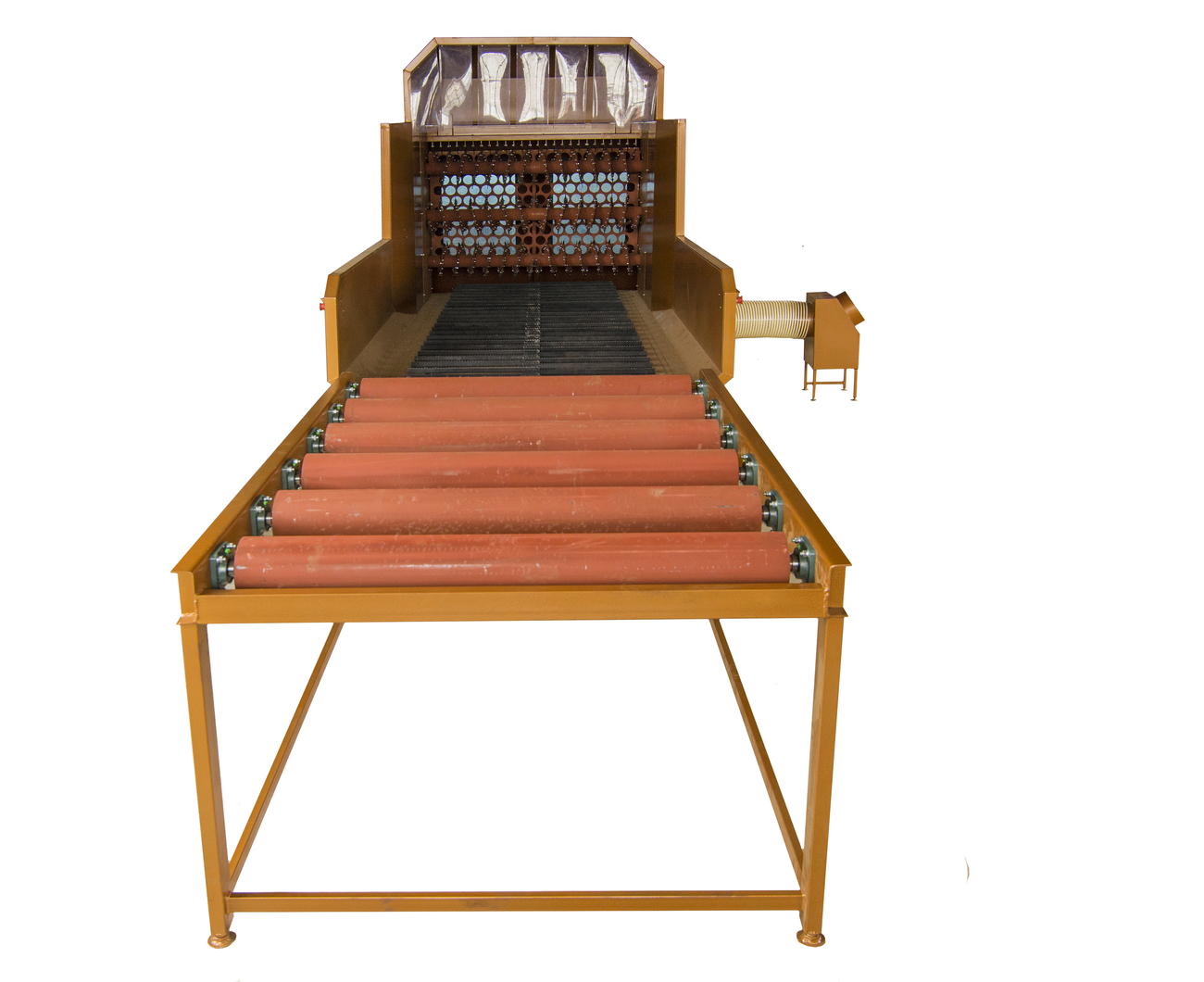

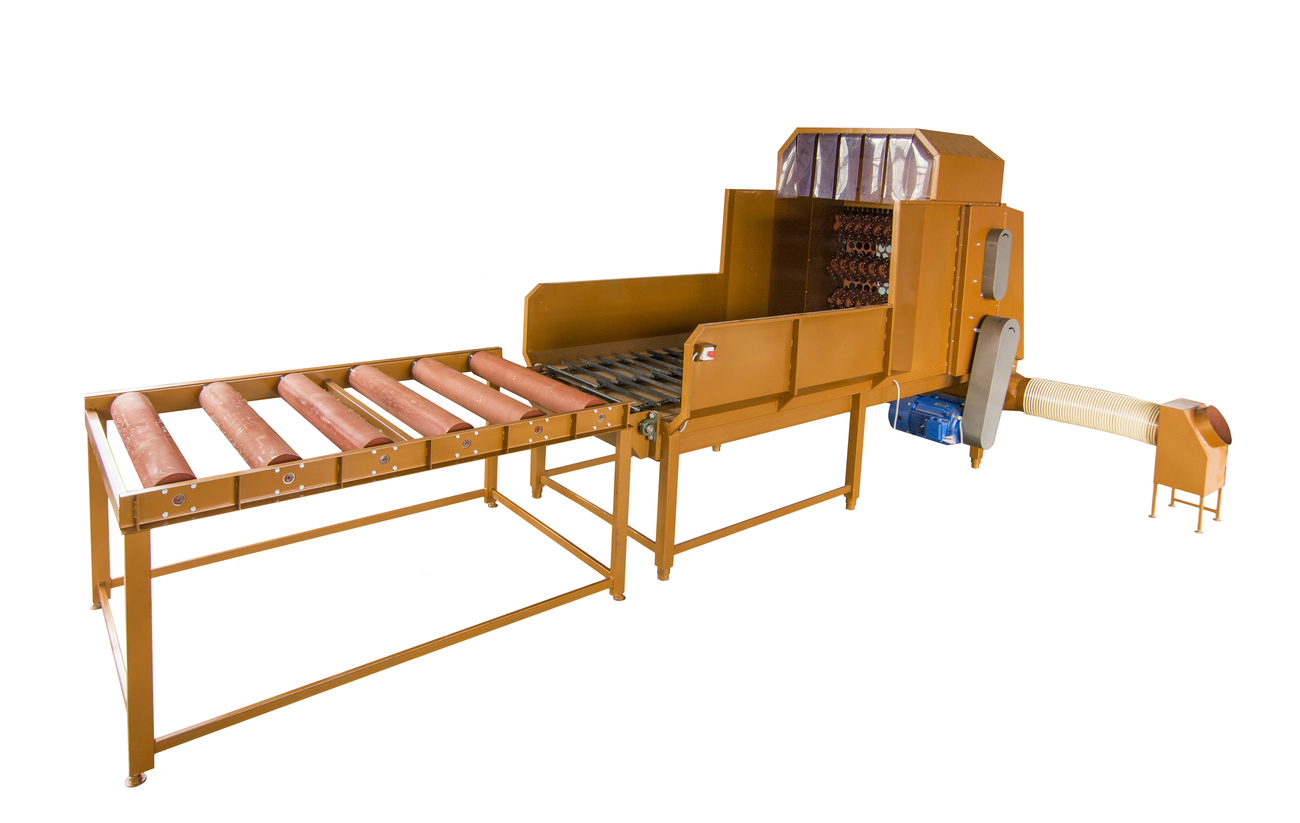

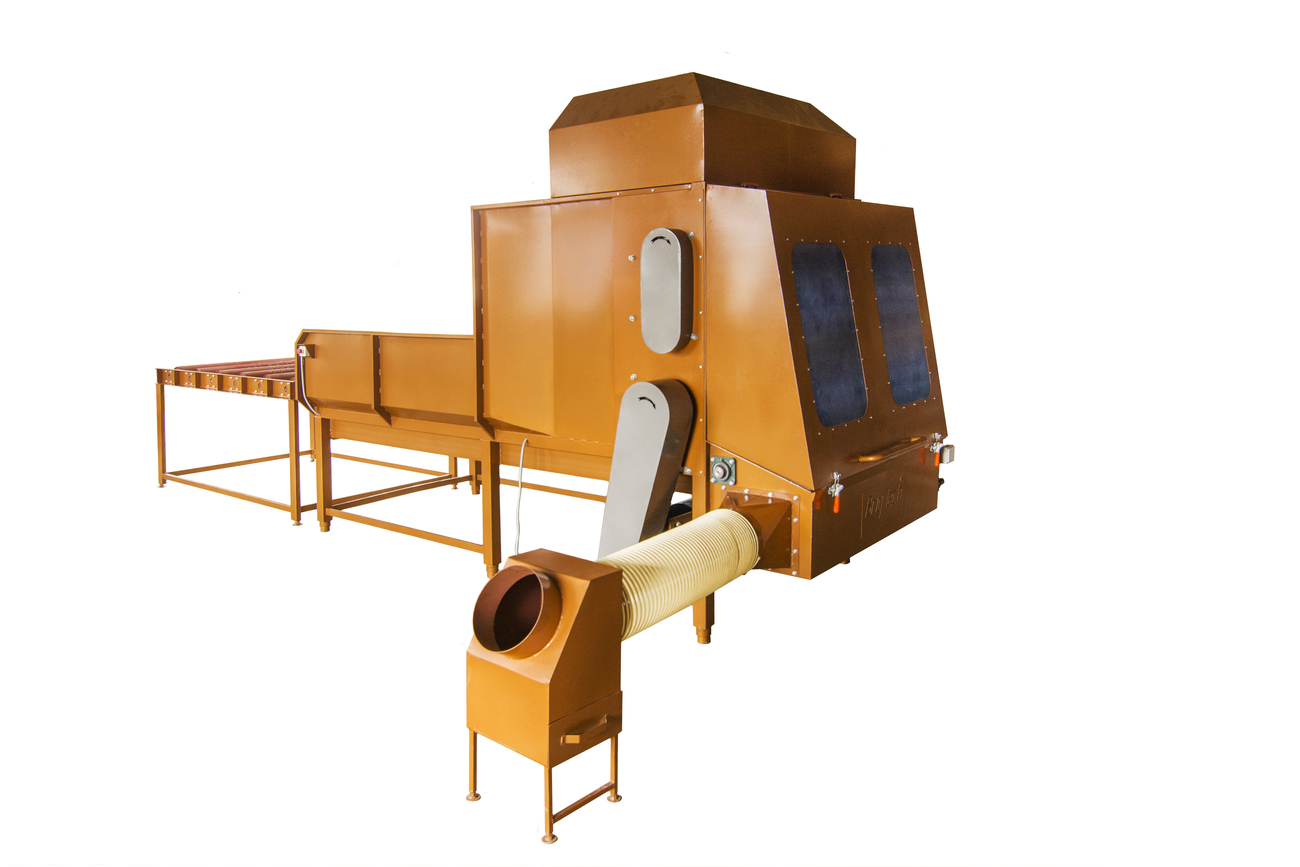

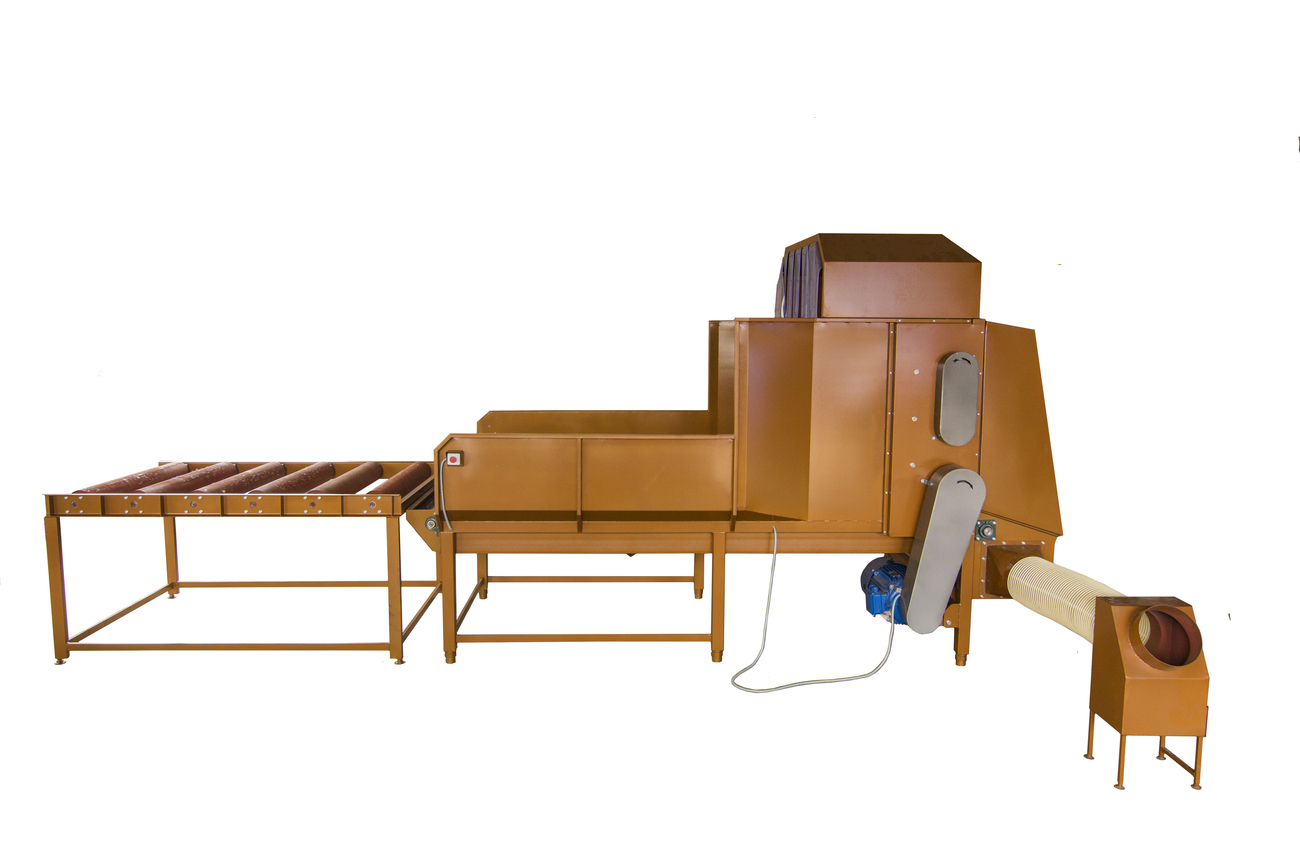

Straw bale shredder ІТS-2
Productivity 900 kg/h
| PERFORMANCE SPECIFICFTIONS | |
|---|---|
| Productivity | 800-1 000 kg\hour |
| Quantity of cutting segments on the screws | 574 pc. |
| Quantity of hummers of the grinding machine | 60 pc. |
| REQUIREMENTS TO RAW MATERIALS | |
| Humidity of raw materials at the entrance | up to 25% |
| Fraction size | Depending on a sieve |
| Bale | Roll and square bale with the weight up to 800 kg |
| SPECIFIED ENGINES POWER | |
| Engine of the conveyor belt | 2,2 kW |
| Motor of raw materials unloading screws | 1,1 kW |
| Bale breaker screws’ motor | 37 kW |
| Engine of the hummer crusher | 37 kW |
| CONNECTIONS | |
| Three-phase network | 380V 50 Hz |
| OVERALL DIMENSIONS | |
| Length | 5 000 mm |
| Width | 2 400 mm |
| Height | 3 500 mm |
| Weight | 4 000 kg |
Video of the operation of our equipment
